Welding Group

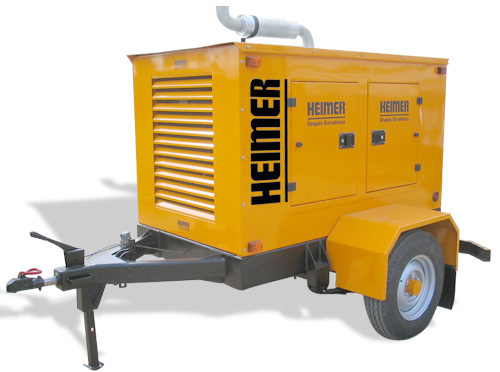

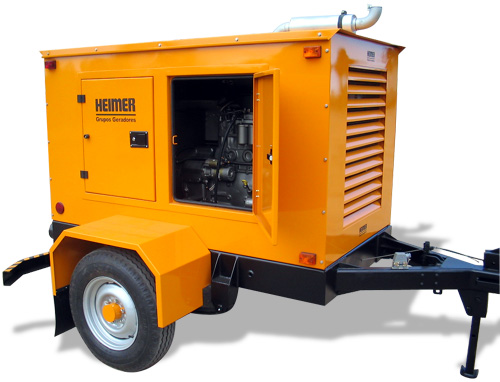

Convenience, reliability and great value for money. The Generator Welding, Welding Heimer GSN kind, was designed for continuous operation in works of medium and large size, adding two functions: a rectifier welding up to 500 amps and, simultaneously, three-phase alternator 6kVA for powering loads, such as lighting and appliances in general.

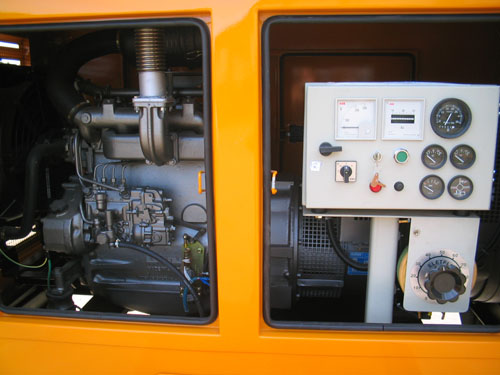

Its robust design incorporates the reactor and rectifier welding, forming a unibody compact and high efficiency. The high-load output voltage rectifier, facilitates opening and arc stability for welding with coated electrodes of up to 6mm in diameter, the different metals of industrial use, allowing precise adjustment of the working current, varying 50-500 amperes. They are equipped with the latest generation diesel engines.

Whatever the use of the Welding Group, there will always be guaranteed the best equipment and the high quality standard of Heimer.

Features:

- Built in steel housing;
- System single-sealed rolling bearing;
- Internal fan embedded in the rotor shaft;
- Insulation Class "F" (155 ° C);
- Excitement type "brushless" Brushless;
- Internal electronic voltage regulator;
- Rotor dynamically balanced;
- Three Phase Rectifier, super sized;
- Adjustment of continuous welding current;
- High duty cycle;
- Minimum maintenance;
- 12 month warranty.
