GEHMIT-2500



ENGINE
Manufacturer Mitsubishi
Model S16RY1PTAA2-1
Power 2986hp (1800rpm)
Cylinder 16 in V
Displacement -
Compression -
Aspiration Turbocharged
Combustion

-
Consumption 482 l/h 60Hz
Cooling System Radiator and fan
Filters Air, fuel and oil
DC System 24 V cc (with batery included), alternator and charger
Panel RPM, hour meter, coolant temperature, oil pressure, manual start
Protection Engine stopped with overheating and low oil pressure



ALTERNATOR
Manufacturer Heimer
Model ATED
Type Synchonous, brushless, 4 poles, 12 leads 3 phase or single phase (optional)
Connection Star with accesible neutral
Regulation Electronic voltage regulation within 2%
Cooling System Shaft mounted fan
Isolation Class "H"
Bearings Single or double bearing (availiable under consult)

POWER
Stand By 2500 kVA - 2000 KW / 60Hz -
Prime 2273 kVA - 1818 kW / 60Hz -

DIMENSIONS
Open Set 5800mm L x 2395mm W x 3460mm H
Silent Set 12192mm L x 2438mm W x 2590mm H

Base: steel base MIG welded with rubber feet for engine and alternator support for use during about 8 hours. (May be supplied separatelly if requested).

Silent Enclosure: (optional) Soundproofed to 75dB at 7m or 85dB at 1.5m

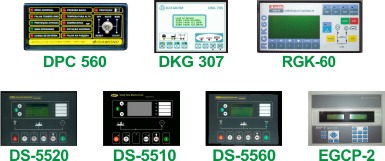

AUTOMATIC SWICHBOARD
Equipped with microprocessed modules of start and stop control and monitoring of engine protection variables.

Accessories included: Muffler, flexible connection and vibra-stops.
Technical, operation and maintenance manuals, electrical diagrams.

* Pictures for illustrations only.
